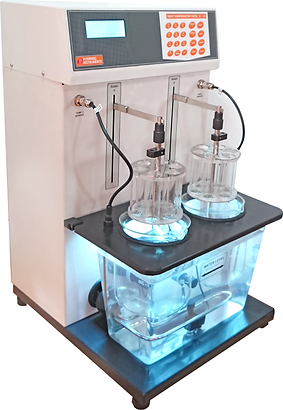

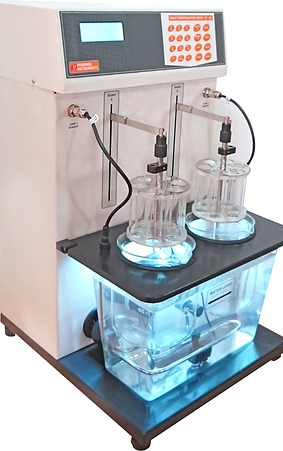

Disintegration Test Apparatus DT-201

Pharmag Instruments' Disintegration Test Apparatus is a solid state instrument designed for the accurate estimation of the disintegration time of tablets as per IP/USP standards.  The instrument is designed to test two batches of six tablets simultaneously.

The DT-201 uses the latest microprocessor technology and advanced engineering techniques to give enhanced accuracy and reproducibility. The system has user friendly prompts to guide you throughout the measurement process.

The disintegrator test apparatus is equipped with a 2 line alphanumeric backlit LCD display, and 20 soft touch membrane type keys with full numeric keypad.  The samples being analysed are automatically stored in the memory in different batch and sample numbers.

The unit is provided with two glass beakers with a capacity of 1,000 cc, with a fixed temperature sensor in the sturdy, acrylic water bath.  The large stainless steel heater ensures perfectly uniform heating.  The instrument has a dual channel temperature system with sensors to monitor the test temperature of the water bath and beaker is accurately maintained at ±0.3°C. The basket is accurately controlled and maintained as per IP/USP specifications.





  • Complies with IP/USP Specifications

  • Extremely useful for pharmaceutical labs

  • Highly accurate and east to operate

  • Basket 'UP' and 'DOWN' movement as per IP/USP specifications

  • 20*2 line alphanumeric backlit  LCD

  • Printer attachment facility

  • Audio visual indicators for system status



ORL-PI-DT-201

DISINTEGRATION TESTER - DT 201 with 20*2 Line Alphanumeric LCD display , 20 setups storage facility ,Dual temperature sensor control of water bath and Beaker and Printer attachment  facility.

ORL-PI-DT-101

DISINTEGRATION TESTER - DT 101 with 20*2 Line Alphanumeric LCD display , 20 setups storage facility ,Dual temperature sensor control of water bath and Beaker and Printer attachment  facility.
