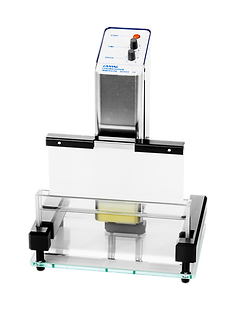

CAMAG Chromatogram Immersion Device

For proper execution of the dipping technique, the chromatogram must be immersed and withdrawn at a controlled uniform speed. By maintaining a well defined vertical speed and immersion time, derivatization conditions can be standardized and «tide marks», which can interfere with densitometric evaluation, are avoided.

Key features

  • Uniform vertical speed, freely selectable between 30 mm/s and 50 mm/s.

  • Immersion time selectable between 1 and 8 seconds and indefinitely.

  • The device can be set to accommodate 10 cm and 20 cm plate height.

  • Battery operated, independent of power supply.


CAMAG® Chromatogram Immersion Device 3
for TLC and HPTLC plates up to 20 x 20 cm, without dip tanks


Dip tank (sintered sheet glass) for plates 20x20 cm, with lid


Dip tank (sintered sheet glass) for plates 20x10 cm, with lid

1 / 2

Please reload

Ordering Information, Accessories and Parts
